PRODUCTS-ARBOR SERIES

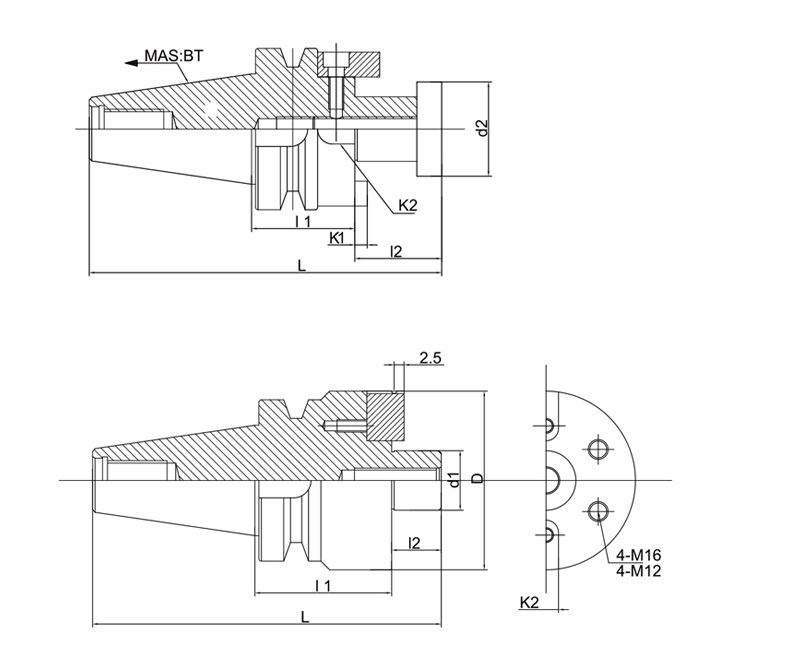

DJ-12006 BT/BT/FMA SHELL MILL ARBORS
产品信息
| 型号 | 类型 | d1 (φ:mm) | I1 (φ:mm) | D (φ:mm) | d2 (φ:mm) | L ER |
L2 (φ:mm) | K1 (φ:mm) | K2 (φ:mm) | 重量 (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| C021010 | BT 30×FMA 25.4-45 | 25.4 | 45 | 50 | 31.5 | 113.4 | 20 | 4.52 | 9.52 | 1.10 |
| C021011 | BT 30×FMA 25.4-60 | 60 | 128.4 | 1.30 | ||||||
| C021012 | BT 30×FMA 31.75-45 | 31.75 | 45 | 60 | 41 | 115.4 | 22 | 6.7 | 12.7 | 1.35 |
| C021110 | BT 40×FMA 25.4-45 | 25.4 | 45 | 50 | 31.5 | 130.4 | 20 | 4.52 | 9.52 | 1.80 |
| C021111 | BT 40×FMA 25.4-60 | 60 | 145.4 | 2.00 | ||||||
| C021112 | BT 40×FMA 25.4-90 | 90 | 175.4 | 2.60 | ||||||
| C021113 | BT 40×FMA 25.4-105 | 105 | 190.4 | 2.70 | ||||||
| C021114 | BT 40×FMA 31.75-45 | 31.75 | 45 | 60 | 41 | 132.4 | 22 | 6.7 | 12.7 | 2.00 |
| C021115 | BT 40×FMA 31.75-75 | 75 | 162.4 | 2.70 | ||||||
| C021116 | BT 40×FMA 31.75-90 | 90 | 177.4 | 2.90 | ||||||
| C021117 | BT 40×FMA 38.10-60 | 38.1 | 60 | 75 | 44.5 | 150.4 | 25 | 8.87 | 15.87 | 2.80 |
| C021118 | BT 40×FMA 50.80-60 | 50.8 | 60 | 98 | 68 | 161.4 | 36 | 9.75 | 19.05 | 4.00 |
| C021210 | BT 50×FMA 25.4-45 | 25.4 | 45 | 50 | 31.5 | 166.8 | 20 | 4.52 | 9.52 | 4.40 |
| C021211 | BT 50×FMA 25.4-90 | 90 | 211.8 | 5.10 | ||||||
| C021212 | BT 50×FMA 25.4-150 | 150 | 271.8 | 6.10 | ||||||
| C021213 | BT 50×FMA 31.75-45 | 31.75 | 45 | 60 | 41 | 168.8 | 22 | 6.7 | 12.7 | 4.50 |
| C021214 | BT 50×FMA 31.75. 75 | 75 | 198.8 | 5.30 | ||||||
| C021215 | BT 50×FMA 31.75-105 | 105 | 288.8 | 5.70 | ||||||
| C021216 | BT 50×FMA 38.10-45 | 38.1 | 45 | 80 | 44.5 | 171.8 | 25 | 8.87 | 15.87 | 4.80 |
| C021217 | BT 50×FMA 38.10-75 | 75 | 201.8 | 6.00 | ||||||
| C021218 | BT 50×FMA 50.80-45 | 50.8 | 45 | 98 | 65 | 182.8 | 36 | 9.75 | 19.05 | 5.70 |
| C021219 | BT 50×FMA 50.80-75 | 75 | 212.8 | 6.80 | ||||||
| C021220 | BT 50×FMA 47.62-75 | 47.62 | 75 | 208.8 | 32 | 12.5 | 25.4 | 7.90 |
