PRODUCTS-ARBOR SERIES

DJ-12016|PULL STUDS

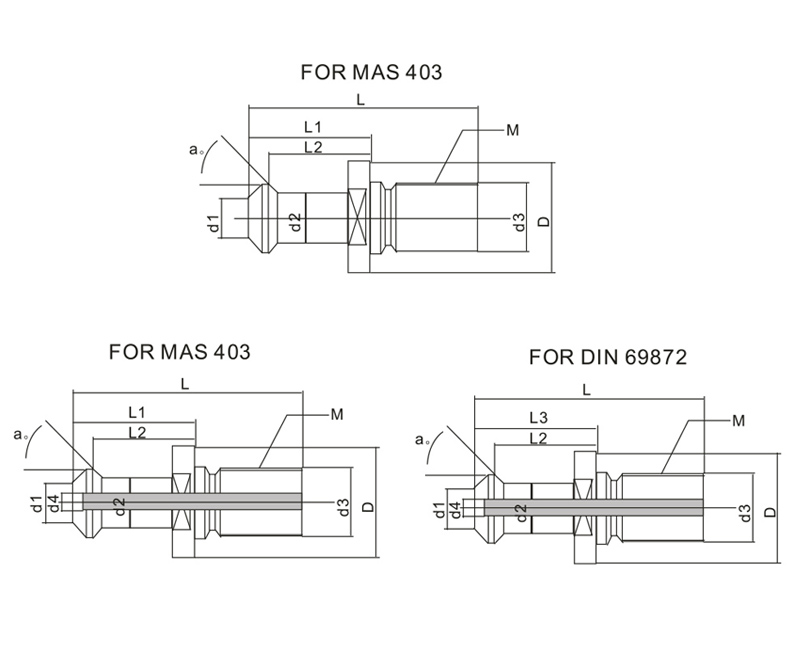

DJ-12016 PULL STUDS

DJ-12016

产品信息

Order NO. Taper NO. L L1 L2 D d1 d2 d3 M
C551010 BT30×90° 90 43 23 18 16.5 11 7 12.5 M12
C551011 BT30×45° 45 43 23 18 16.5 11 7 12.5 M12
C551012 BT30×60° 60 43 23 18 16.5 11 7 12.5 M12
C551111 BT40×90° 90 60 35 28 23 15 10 17 M16
C551110 BT40x45° 45 60 35 28 23 15 10 17 M16
C551112 BT40×60° 60 60 35 28 23 15 10 17 M16
C551210 BT50×90° 90 85 45 35 38 23 17 25 M24
C551211 BT50×45° 45 85 45 35 38 23 17 25 M24
C551212 BT50×60° 60 85 45 35 38 23 17 25 M24
Order NO. Taper NO. L L1 L2 D d1 d2 d3 M
C551310 BT40×45° 45 60 35 28 23 15 10 4 M16
C551311 BT40×60° 60 60 35 28 23 15 10 4 M16
C551312 BT40×90° 90 60 35 28 23 15 10 4 M16
C551410 BT50×45° 45 85 45 35 38 23 17 7 M24
C551411 BT50×60° 60 85 45 35 38 23 17 7 M24
C551412 BT50×90° 90 85 45 35 38 23 17 7 M24
Order NO. Taper NO. L L1 L2 D d1 d2 d3 M
C551510 DIN 30-A 44 24 19 17 13 9 13 - M12
C551610 DIN 40-A 54 26 20 23 19 14 17 7 M16
C551611 DIN 40-A-L 54 29 23 23 19 14 17 7 M16
C551710 DIN 50-A 74 34 25 36 28 21 25 11.5 M24
