CENTER SERIES-NORMAL
DJ-01108 VERSA-TURN LIVE CENTER
产品信息
1. The center adopts the combination of four deep groove ball bearings
2. Be suitable for high speed and light load machining in special lathe.
3. Four bearings arrangement makes the top structure more stable, and effectively extends the service life of the center 4. The head is made of alloy tool steel, and after heat treatment the hardness of it is HRC60°±2°, and it has high rigidity and high wear resistance.
2. Be suitable for high speed and light load machining in special lathe.
3. Four bearings arrangement makes the top structure more stable, and effectively extends the service life of the center 4. The head is made of alloy tool steel, and after heat treatment the hardness of it is HRC60°±2°, and it has high rigidity and high wear resistance.

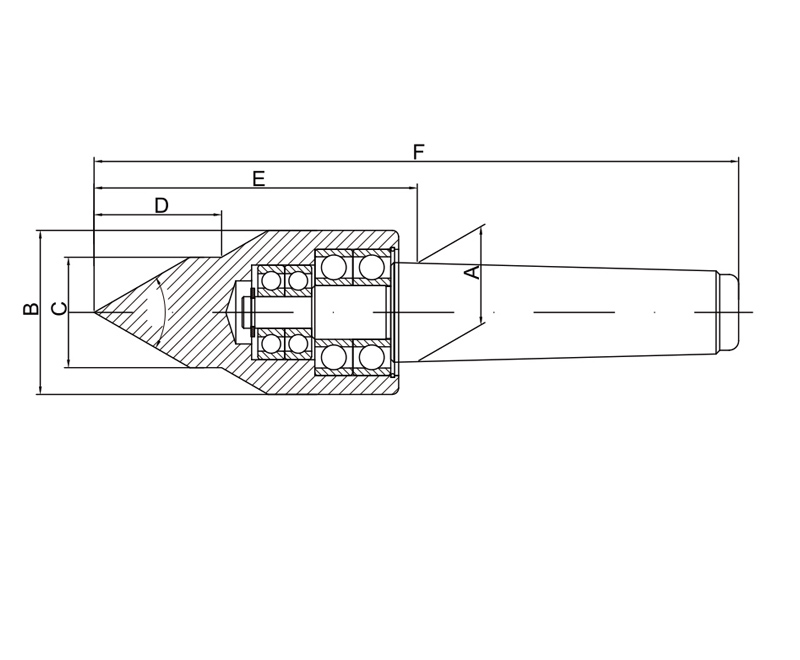

| 型号 | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
F (mm) |
Max load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|
| MT2 | 17.780 | 42 | 28 | 31 | 81.5 | 145.5 | 200 | 3500 | 0.005 |
| MT3 | 23.825 | 46 | 32 | 33 | 88.5 | 169.5 | 300 | 2000 | 0.005 |
| MT4 | 31.267 | 52 | 40 | 40 | 102.5 | 205 | 400 | 2500 | 0.008 |
| MT5 | 44.399 | 68 | 50 | 50 | 130 | 259.5 | 600 | 2000 | 0.008 |
