CENTER SERIES-NORMAL
DJ-01102 VERSA-TURN LIVE CENTER
产品信息
1. The center adopts the combination of deep groove ball bearings.
2. Its head is small and can be applied into different processing demands.
3. It is applicable to medium high speed light load processing for special lathes.
4. The head is made of alloy tool steel and its hardness after being heat treated could reach HRC60°±2°. It is thus has high steel performance and high wear resistance.
2. Its head is small and can be applied into different processing demands.
3. It is applicable to medium high speed light load processing for special lathes.
4. The head is made of alloy tool steel and its hardness after being heat treated could reach HRC60°±2°. It is thus has high steel performance and high wear resistance.

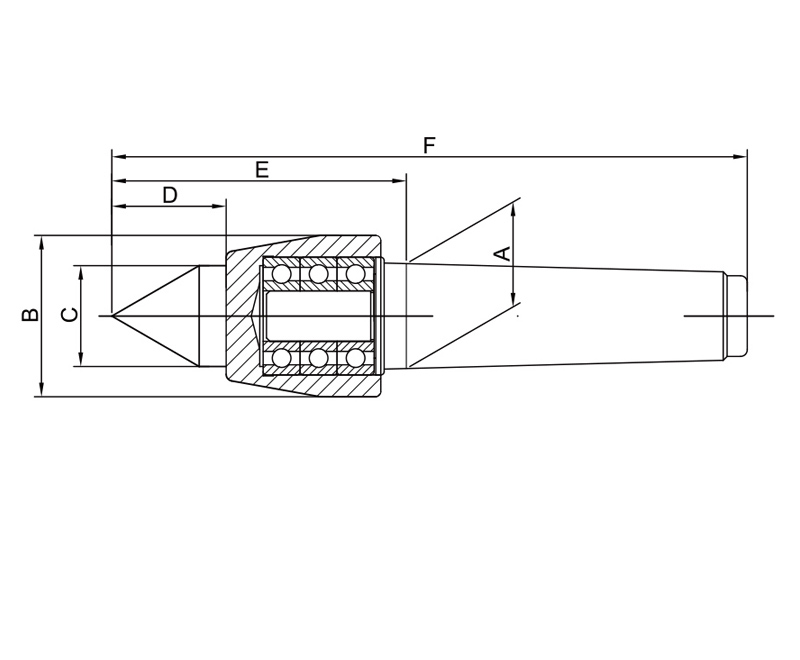

| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
F (mm) |
Max load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|
| MT1 | 12.065 | 32 | 16 | 21 | 54.5 | 108 | 40 | 4000 | 0.005 |
| MT2 | 17.780 | 40 | 22 | 26 | 68 | 132 | 120 | 3500 | 0.005 |
| MT3 | 23.825 | 45 | 26 | 32 | 83 | 164 | 250 | 3000 | 0.005 |
| MT4 | 31，267 | 48 | 30 | 34 | 93.5 | 188 | 350 | 2500 | 0.008 |
| MT5 | 44.399 | 68 | 45 | 50 | 118.5 | 248 | 500 | 2000 | 0.008 |
