CENTER SERIES-SPECIAL TYPE

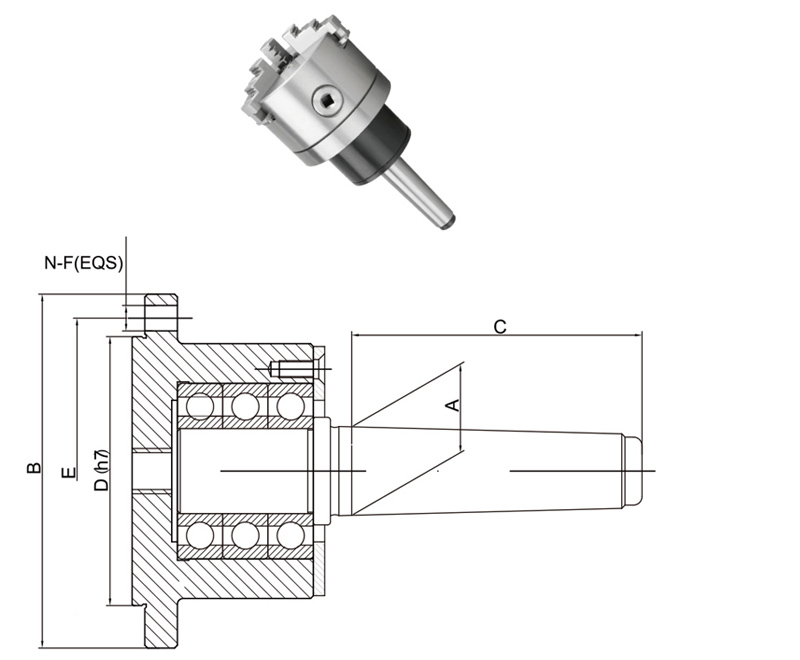

DJ-01106 CHUCK REVOLVING BED
产品信息
This product is mainly used to calibrate or support workpiece during processing, It is used with standard chucks
1. The internal adopts three precise deep groove ball bearings,lt is applicable to the high rotating speed processing. 2.The connecting size for stangard 3-jaw self-centering chuck is used for the size of B,D,EN-F and so on,lt can be customized according to the client's demand.
3.The main body and the taper shank adopt quality carbon steel , with whole quenched,lIt is thus has good performance.
1. The internal adopts three precise deep groove ball bearings,lt is applicable to the high rotating speed processing. 2.The connecting size for stangard 3-jaw self-centering chuck is used for the size of B,D,EN-F and so on,lt can be customized according to the client's demand.
3.The main body and the taper shank adopt quality carbon steel , with whole quenched,lIt is thus has good performance.
| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
Max load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|
| MT2 | 17.780 | 80-125 | 64 | 55-95 | 66-108 | 500 | 2500-4000 | 0.005 |
| MT3 | 23.825 | 80-160 | 81 | 55-130 | 66-142 | 800 | 2000-4000 | 0.005 |
| MT4 | 31.267 | 80-200 | 102.5 | 55-165 | 66-180 | 1000 | 1500-4000 | 0.01 |
| MT5 | 44.399 | 10-315 | 129.5 | 72-260 | 84-285 | 1500 | 800-3500 | 0.01 |
