PRODUCTS-CHUCK SERIES

DJ-09802B|KEY TYPE CHUCK LIGHT DUTY

DJ-09802B KEY TYPE CHUCK LIGHT DUTY

DJ-09802B

产品信息

1. High precision threaded and tapered tightly mounts on tools.
2. Jaws are specifically engineered for tight tolerance production drilling.
3. Super precision and durable.

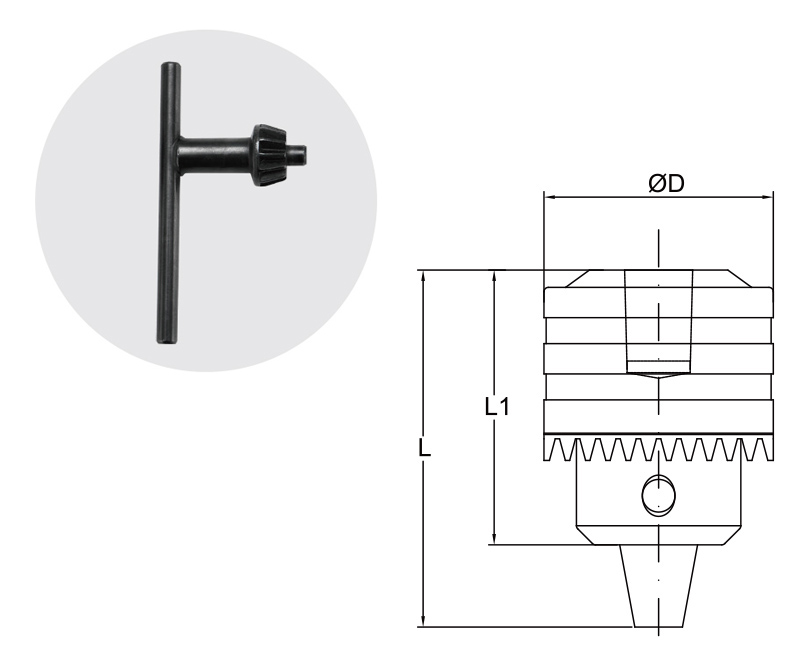

Model Capacity Capacity pulgadas Mount D
(φ:mm)		 L1
(φ:mm)		 L
(φ:mm)
J3506L 0.6-6 1/64-1/4 3/8-24UNF 30.3 40 49
J3510L 1.5-10 1/16-3/8 3/8-24UNF 34 49 58.5
J3510L 1.5-10 1/16-3/8 1/2-20UNF 34 49 58.5
J3510L 1.5-10 1/16-3/8 M10x10 34 49 58.5
J3510L 1.5-10 1/16-3/8 M12x1.25 34 49 58.5
J3513L 1.5-13 1/16-1/2 3/8-24UNF 42 59 71.5
J3513L 1.5-13 1/16-1/2 1/2-20UNF 42 59 71.5
J3513L 1.5-13 1/16-1/2 M12x1 42 59 71.5
J3513L 1.5-13 1/16-1/2 M12x1.25 42 59 71.5
J3513L 1.5-13 1/16-1/2 M14x10 42 59 71.5
J3516L 3.0-16 1/8-5/8 3/8-24UNF 52 67 86
J3516L 3.0-16 1/8-5/8 1/2-20UNF 52 67 86
J3516L 3.0-16 1/8-5/8 5/8-16UNF 52 67 86
J3516L 3.0-16 1/8-5/8 M12x1.25 52 67 86
型号 夹持范围 Capacity pulgadas 连接尺寸 D (φmm) L1 (φmm) L (φmm)
J2506L 0.6-6 1/64-1/4 B10 30.3 49 49
J2510L 1.5-10 1/16-3/8 B12 34 49 58.5
J2513L 1.5-13 1/16-1/2 B16 42 59 71.5
J2516L 3.0-16 1/8-5/8 B16 52 67 86
J2516L 3.0-16 1/8-5/8 B18 52 67 86
型号 夹持范围 Capacity pulgadas 连接尺寸 D (φmm) L1 (φmm) L (φmm)
J2606L 0.6-6 1/64-1/4 JT1 30.3 40 49
J2610L 1.5-10 1/16-3/8 JT2 34 49 58.5
J2613L 1.5-13 1/16-1/2 JT33 42 59 71.5
