PRODUCTS-CYLINDER SERIES
Certified Company ISO 9001-2008
DJ-257 CLOSE-CENTER HYDRAULIC CYLINDER
产品信息
1. High performance, low cost, is the ideal equipment toolo
2. Aluminum alloy cylinder body, small volume, and light weight.
3. Uses import the bearing and the seal, high use speed, long life.
4. Flowing tubing head pressure actuation, big power, broad use scope
5. When high speed work performance stable reliable
2. Aluminum alloy cylinder body, small volume, and light weight.
3. Uses import the bearing and the seal, high use speed, long life.
4. Flowing tubing head pressure actuation, big power, broad use scope
5. When high speed work performance stable reliable

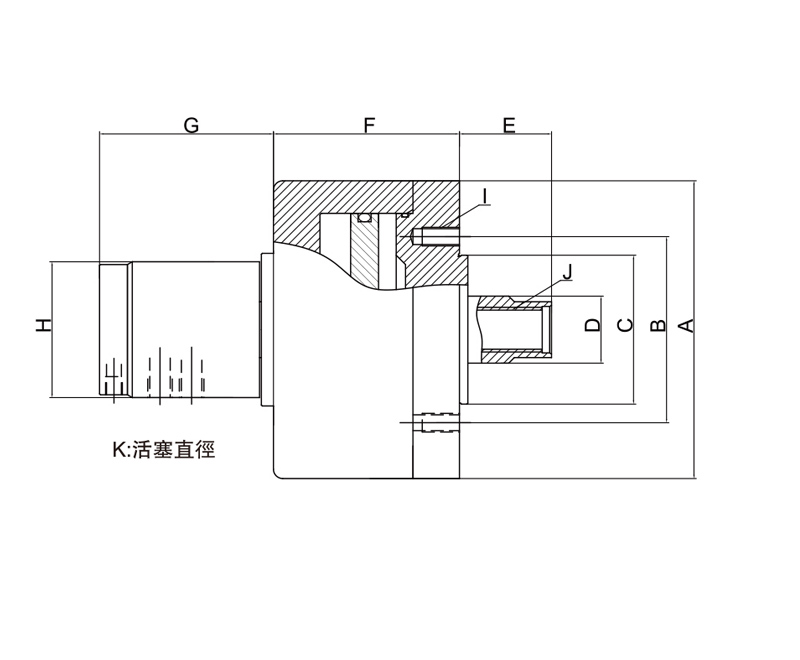

| Model | K (φ:mm) | A (φ:mm) | B (φ:mm) | C (φ:mm) | D (mm) | E (mm) | F (mm) | G (φ:mm) | H (φ:mm) | I (φ:mm) | J (φ:mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 257-80 | 80 | 110 | 80 | 50 | 25 | 35-50 | 78 | 84 | 73 | 6-M8 | M16 |
| 257-100 | 100 | 135 | 90 | 65 | 30 | 35-55 | 85 | 90 | 73 | 6-M8 | M20 |
| 257-125 | 125 | 160 | 100 | 80 | 36 | 35-60 | 100 | 94 | 73 | 6-M10 | M24 |
| 性能参数 | 257-80 | 257-100 | 257-125 |
|---|---|---|---|
| 最高輸入油壓 | 35KG/CM² | 35KG/CM² | 35KG/CM² |
| 最高轉速RPM | 4000 | 4000 | 3500 |
| 活塞行程 | 15 | 20 | 25 |
| 活塞面積推向/拉向 | 44/41CM² | 75/69CM² | 119/111CM² |
| 産品净重 | 5.5KG | 7KG | 8KG |
