PRODUCTS-TAPER SLEEVES SERIES

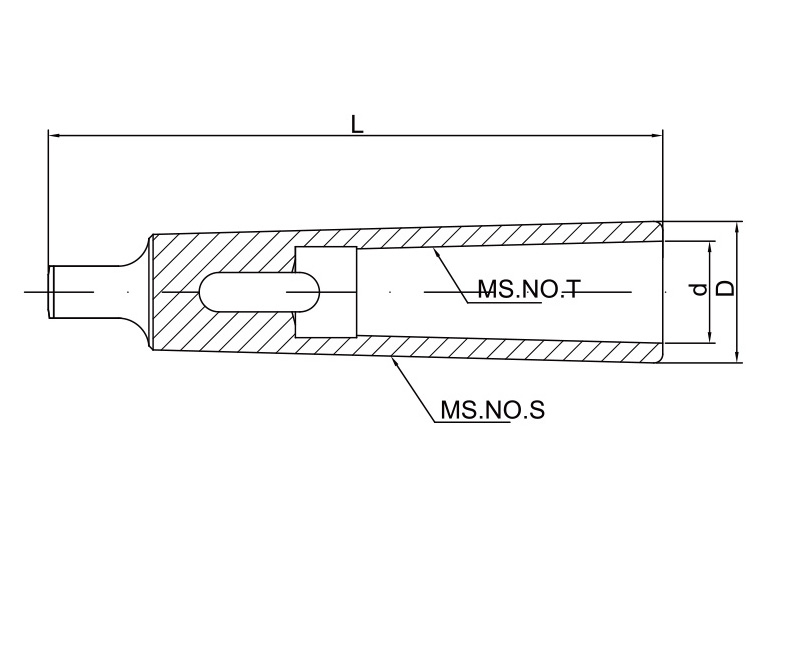

DJ-02002 MORSE TAPER SLEEVES
产品信息
| Model | MS.NO.S | MS.NO.T | L (φ:mm) |
D (φ:mm) |
d (φ:mm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|
| MT2-1 | 2 | 1 | 92 | 18.60 | 12.065 | 0.015 |
| MT3-1 | 3 | 99 | 24.1 | |||
| MT3-2 | 2 | 112 | 24.70 | 17.780 | ||
| MT4-1 | 4 | 1 | 124 | 31.60 | 12.065 | |
| MT4-2 | 2 | 17.780 | ||||
| MT4-3 | 3 | 140 | 32.40 | 23.825 | ||
| MT5-2 | 5 | 2 | 156 | 44.70 | 17.780 | 0.020 |
| MT5-3 | 3 | 23.825 | ||||
| MT5-4 | 4 | 170 | 45.50 | 31.267 | ||
| MT6-3 | 6 | 3 | 218 | 63.80 | 23.825 | |
| MT6-4 | 4 | 31.267 | ||||
| MT6-5 | 5 | 44.399 |
