PRODUCTS-TAPER SLEEVES SERIES

DJ-02006|EXTENSION SOCKET WITH MS.HOLE

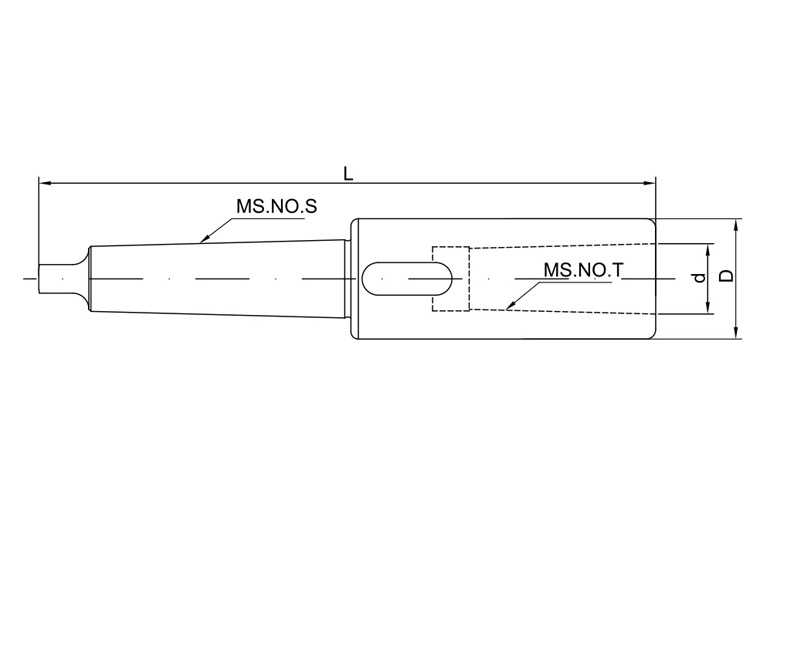

DJ-02006 EXTENSION SOCKET WITH MS.HOLE

DJ-02006

产品信息

Model MS.NO.S MS.NO.T D
(φ:mm)		 D
(φ:mm)		 L
(φ:mm)		 Accuracy
(mm)
1-1 1 1 20 12.065 145 0.02
1-2 2 30 17.780 160
3 36 23.825 181
1-3
2-1 2 1 20 12.065 160
2-2 2 30 17.780 175
2-3 3 36 23.825 196
2-4 4 48 31.267 221
3-1 3 1 20 12.065 175
3-2 2 30 17.780 194
3-3 3 36 23.825 215
3-4 4 40 23.825 215
3-5 5 48 31.267 240
3-6 6 63 44.399 275
4-1 4 1 20 12.065 200
4-2 2 30 17.780 215
4-3 3 36 23.825 240
4-4 4 48 31.267 265
4-5 5 63 44.399 300
4-6 6 85 63.348 368
5-1 5 1 20 12.065 232 0.04
5-2 2 30 17.780 247 0.03
5-3 3 36 23.825 268
5-4 4 48 31.267 300
5-5 5 63 44.399 335 0.03
5-6 6 85 63.348 403 0.04
6-1 6 1 20 12.065 294
6-2 2 30 17.780 309 0.03
6-3
3 36 23.825 330
6-4
4 48 31.267 355
6-5
5 63 44.399 390
