PRODUCTS-TAPER SLEEVES SERIES

D1-02008|7: 24 SLEEVES

D1-02008 7: 24 SLEEVES

D1-02008

产品信息

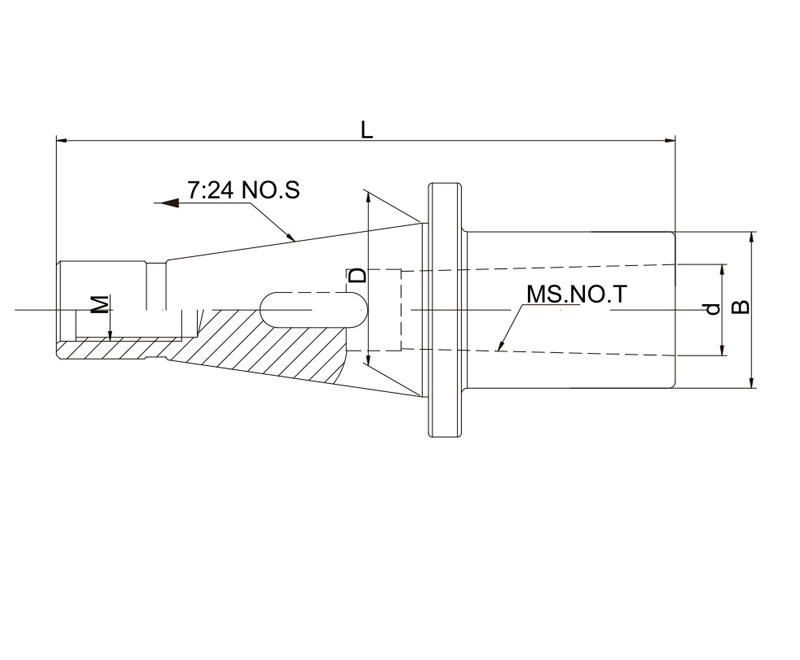

Model 7:24NO.S MS.NO.T B
(φ:mm)
D
(φ:mm)
d
(φ:mm)
L
(mm)
M
(mm)
NT30-MT1 30 MT1 25 31.75 12.065 118 M12
NT30-MT2 MT2 32 17.78 118
NT30-MT3 MT3 40 23.825 138
NT30-MT4 MT4 48 31.267 212
NT40-MT1 40 MT1 25 44.45 12.065 143 M16
NT40-MT2 MT2 32 17.78 143
NT40-MT3 MT3 40 23.825 158
NT40-MT4 MT4 48 31.267 188
NT40-MT5 MT5 61 44.399 273
NT50-MT1 50 MT1 25 69.85 12.065 172 M24
NT50-MT2 MT2 32 17.78 187
NT50-MT3 MT3 40 23.825 192
NT50-MT4 MT4 48 31.267 197
NT50-MT5 MT5 61 44.399 232
